Intro to Windows x64 Assembly

---

Before diving into low level concepts we need first to familiarize with some basic concepts such as number systems, bits and bytes etc…

Debrief

Number Systems

In reverse engineering the most important number systems needed are binary and hexadecimal. Hexadecimal is made to facilitate the reading of long binary addresses or values.

in a 64 bit system a binary can go up to 64 bits long so 64 ones and zeros however using hex will simplify it to 16 digits since each 4 bits is equal to one hex digit.

binary is also called base 2 because it is composed only of 1 and 0. hex is the other hand is base 15 from 1 to f:

Hex	Decimal	Binary
0	0	0000
1	1	0001
2	2	0010
3	3	0011
4	4	0100
5	5	0101
6	6	0110
7	7	0111
8	8	1000
9	9	1001
A	10	1010
B	11	1011
C	12	1100
D	13	1101
E	14	1110
F	15	1111

Bits and Bytes

Data type sizes vary based on architecture. These are the most common sizes :

• Bit is one binary digit. Can be 0 or 1.
• Nibble is 4 bits.
• Byte is 8 bits.
• Word is 2 bytes.
• Double Word (DWORD) is 4 bytes. Twice the size of a word.
• Quad Word (QWORD) is 8 bytes. Four times the size of a word.

Signed numbers can be positive or negative. Unsigned numbers can only be positive. The names come from how they work. Signed numbers need a sign bit to distinguish whether or not they’re negative, similar to how we use the + and - signs.

Offsets

Data positions are referenced by how far away they are from the address of the first byte of data, known as the base address (or just the address), of the variable. The distance a piece of data is from its base address is considered the offset. For example, let’s say we have some data, 12345678. Just to push the point, let’s also say each number is 2 bytes. With this information, 1 is at offset 0x0, 2 is at offset 0x2, 3 is at offset 0x4, 4 is at offset 0x6, and so on. You could reference these values with the format BaseAddress+0x##. BaseAddress+0x0 or just BaseAddress would contain the 1, BaseAddress+0x2 would be the 2, and so on.

Binary operations

Operation	Symbol	Description	Example (4-bit)	Result
AND	&	Returns 1 only if both bits are 1	1100 & 1010	1000
OR	\|	Returns 1 if either bit is 1	1100 \| 1010	1110
XOR	^	Returns 1 if bits are different	1100 ^ 1010	0110
NOT	~	Inverts all bits (1→0, 0→1)	~1100	0011
Left Shift	<<	Shifts bits left, fills with 0s	1100 << 1	1000
Right Shift	>>	Shifts bits right, fills with 0s*	1100 >> 1	0110

Assembly

The end goal of a compiler is to translate high-level code into a language the CPU can understand. This language is Assembly. The CPU supports various instructions that all work together doing things such as moving data, performing comparisons, doing things based on comparisons, modifying values, and anything else that you can think of. While we may not have the high-level source code for any program, we can get the Assembly code from the executable.

if(x == 4){
    func1();
}else{
    return;
}

this C code will be translated to :

mov RAX, x
cmp RAX, 4
jne 5       ; Line 5 (ret)
call func1
ret

First, the variable x is moved into RAX. RAX is a register, think of it as a variable in assembly. Then, we compare that with 4. If the comparison between RAX (4) and 5 results in them not being equal then jump (jne) to line 5 which returns. Otherwise, they are equal, so call func1().

Registers

Depending on whether you are working with 64-bit or 32-bit assembly things may be a little different. As already mentioned this course focuses on 64-bit Windows.

Let’s talk about General Purpose Registers (GPR). You can think of these as variables because that’s essentially what they are. The CPU has its own storage that is extremely fast. This is great, however, space in the CPU is extremely limited. Any data that’s too big to fit in a register is stored in memory (RAM). Accessing memory is much slower for the CPU compared to accessing a register. Because of the slow speed, the CPU tries to put data in registers instead of memory if it can. If the data is too large to fit in a register, a register will hold a pointer to the data so it can be accessed.

• RAX store functions return values
• RBX base pointer to the data section
• RCX counter for string and loop operations
• RDX I/O pointer or  the data register
• RSI source index pointer for string operations
• RDI destination index pointer for string operations
• RSP stack top pointer
• RBP stack frame base pointer
• RIP pointer to the next instruction to execute (instruction pointer)

RSP and RBP should almost always only be used for what they were designed for. They store the location of the current stack frame (we’ll get into the stack soon) which is very important. If you do use RBP or RSP, you’ll want to save their values so you can restore them to their original state when you are finished. As we go along, you’ll get the hang of the importance of various registers at different stages of execution.

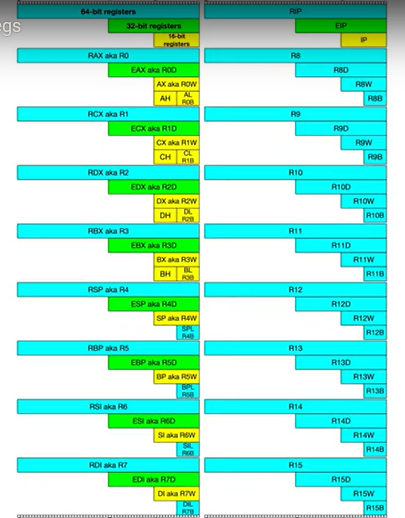

Each register can be broken down into smaller segments which can be referenced with other register names. RAX is 64 bits, the lower 32 bits can be referenced with EAX, and the lower 16 bits can be referenced with AX. AX is broken down into two 8 bit portions. The high/upper 8 bits of AX can be referenced with AH. The lower 8 bits can be referenced with AL.

If 0x0123456789ABCDEF was loaded into a 64-bit register such as RAX, then RAX refers to 0x0123456789ABCDEF, EAX refers to 0x89ABCDEF, AX refers to 0xCDEF, AH refers to 0xCD, AL refers to 0xEF.

What is the difference between the “E” and “R” prefixes? Besides one being a 64-bit register and the other 32 bits, the “E” stands for extended. The “R” stands for register. The “R” registers were newly introduced in x64, and no, you won’t see them on 32-bit systems.

instruction pointer

RIP is the “Instruction Pointer”. It is the address of the next line of code to be executed. You cannot directly write into this register, only certain instructions such as ret can influence the instruction pointer.

Instructions

The ability to read and comprehend assembly code is vital to reverse engineering. There are roughly 1,500 instructions, however, a majority of the instructions are not commonly used or they’re just variations (such as MOV and MOVS). Just like in high-level programming, don’t hesitate to look up something you don’t know.

Before we get started there are three different terms you should know: immediate, register, and memory.

• An immediate value (or just immediate, sometimes IM) is something like the number 12. An immediate value is not a memory address or register, instead, it’s some sort of constant data.
• A register is referring to something like RAX, RBX, R12, AL, etc.
• Memory or a memory address refers to a location in memory (a memory address) such as 0x7FFF842B.

Data Movement Instructions

Instruction	Syntax	Description	Example
MOV	MOV dest, src	Copy data from source to destination	MOV EAX, EBX
PUSH	PUSH src	Push value onto stack	PUSH EAX
POP	POP dest	Pop value from stack	POP EBX
LEA	LEA dest, src	Load effective address	LEA EAX, [EBX+8]
XCHG	XCHG op1, op2	Exchange values	XCHG EAX, EBX

Arithmetic Instructions

Instruction	Syntax	Description	Example
ADD	ADD dest, src	Add source to destination	ADD EAX, 5
SUB	SUB dest, src	Subtract source from destination	SUB EAX, EBX
INC	INC dest	Increment by 1	INC ECX
DEC	DEC dest	Decrement by 1	DEC ECX
MUL	MUL src	Unsigned multiply (EAX * src)	MUL EBX
IMUL	IMUL src	Signed multiply	IMUL EBX
DIV	DIV src	Unsigned divide (EDX:EAX / src)	DIV EBX
IDIV	IDIV src	Signed divide	IDIV EBX
NEG	NEG dest	Two’s complement negation	NEG EAX

Logical/Bitwise Instructions

Instruction	Syntax	Description	Example
AND	AND dest, src	Bitwise AND	AND EAX, 0xFF
OR	OR dest, src	Bitwise OR	OR EAX, EBX
XOR	XOR dest, src	Bitwise XOR	XOR EAX, EAX
NOT	NOT dest	Bitwise NOT (one’s complement)	NOT EAX
SHL	SHL dest, count	Shift left logical	SHL EAX, 2
SHR	SHR dest, count	Shift right logical	SHR EAX, 1
SAL	SAL dest, count	Shift arithmetic left	SAL EAX, 3
SAR	SAR dest, count	Shift arithmetic right	SAR EAX, 1
ROL	ROL dest, count	Rotate left	ROL EAX, 4
ROR	ROR dest, count	Rotate right	ROR EAX, 2

Comparison Instructions

Instruction	Syntax	Description	Example
CMP	CMP op1, op2	Compare (subtract without storing)	CMP EAX, 10
TEST	TEST op1, op2	Logical compare (AND without storing)	TEST EAX, EAX

Control Flow Instructions

Instruction	Syntax	Description	Example
JMP	JMP label	Unconditional jump	JMP start
JE/JZ	JE label	Jump if equal/zero	JE equal_label
JNE/JNZ	JNE label	Jump if not equal/not zero	JNE not_equal
JG/JNLE	JG label	Jump if greater (signed)	JG greater
JL/JNGE	JL label	Jump if less (signed)	JL less
JA/JNBE	JA label	Jump if above (unsigned)	JA above
JB/JNAE	JB label	Jump if below (unsigned)	JB below
CALL	CALL label	Call procedure	CALL function
RET	RET	Return from procedure	RET
LOOP	LOOP label	Decrement ECX and jump if not zero	LOOP loop_start

String Instructions

Instruction	Syntax	Description	Example
MOVS	MOVSB/MOVSW/MOVSD	Move string (byte/word/dword)	MOVSB
CMPS	CMPSB/CMPSW/CMPSD	Compare strings	CMPSB
SCAS	SCASB/SCASW/SCASD	Scan string	SCASB
LODS	LODSB/LODSW/LODSD	Load string	LODSB
STOS	STOSB/STOSW/STOSD	Store string	STOSB
REP	REP instruction	Repeat while ECX ≠ 0	REP MOVSB

Miscellaneous Instructions

Instruction	Syntax	Description	Example
NOP	NOP	No operation (do nothing)	NOP
INT	INT num	Software interrupt	INT 0x80
SYSCALL	SYSCALL	System call (64-bit)	SYSCALL
CPUID	CPUID	CPU identification	CPUID
RDTSC	RDTSC	Read time-stamp counter	RDTSC

Flags

Flags are used to signify the result of the previously executed operation or comparison. For example, if two numbers are compared to each other the flags will reflect the results such as them being even. Flags are contained in a register called EFLAGS (x86) or RFLAGS (x64). I usually just refer to it as the flags register. There is an actual FLAGS register that is 16 bit, but the semantics are just a waste of time. If you want to get into that stuff, look it up, Wikipedia has a good article on it. I’ll tell you what you need to know.

Here are comprehensive tables of x86 CPU flags:

Status Flags (EFLAGS/RFLAGS Register)

Flag	Bit	Symbol	Name	Description	Set When	Common Use
CF	0	Carry Flag	Carry	Set if arithmetic operation generates a carry/borrow	Unsigned overflow occurs	Unsigned arithmetic overflow detection
PF	2	Parity Flag	Parity	Set if low byte has even number of 1s	Low 8 bits have even parity	Error checking, rarely used in modern code
AF	4	Auxiliary Flag	Adjust	Set if carry from bit 3 to bit 4	BCD arithmetic needs adjustment	Binary-Coded Decimal (BCD) operations
ZF	6	Zero Flag	Zero	Set if result is zero	Result = 0	Testing equality, null checks
SF	7	Sign Flag	Sign	Set if result is negative (MSB = 1)	Most significant bit = 1	Signed number sign detection
TF	8	Trap Flag	Trap	Enable single-step debugging	Set by debugger	Single-step execution mode
IF	9	Interrupt Flag	Interrupt Enable	Enable/disable maskable interrupts	Interrupts enabled	Interrupt handling control
DF	10	Direction Flag	Direction	String operation direction	Set = decrement, Clear = increment	String operation control (MOVS, CMPS, etc.)
OF	11	Overflow Flag	Overflow	Set if signed arithmetic overflow	Signed overflow occurs	Signed arithmetic overflow detection
IOPL	12-13	I/O Privilege	I/O Privilege Level	Current privilege level for I/O operations	Set by OS	Protected mode I/O access control
NT	14	Nested Task	Nested Task	Indicates nested task	Task switch occurred	Task management (rarely used)
RF	16	Resume Flag	Resume	Temporarily disable debug exceptions	Set before returning from exception	Debug exception control
VM	17	Virtual Mode	Virtual 8086	Enable virtual 8086 mode	Virtual mode active	Running 16-bit code in protected mode
AC	18	Alignment Check	Alignment Check	Enable alignment checking	Alignment check enabled	Memory alignment verification
VIF	19	Virtual IF	Virtual Interrupt	Virtual image of IF flag	Virtual interrupt state	Virtualization support
VIP	20	Virtual IP	Virtual Interrupt Pending	Virtual interrupt pending	Virtual interrupt pending	Virtualization support
ID	21	ID Flag	Identification	Ability to modify CPUID flag	CPUID instruction supported	CPUID capability detection

Calling conventions

When a function is called you could, theoretically, pass parameters via registers, the stack, or even on disk. You just need to be sure that the function you are calling knows where you’re putting the parameters. This isn’t too big of a problem if you are using your own functions, but things would get messy when you start using libraries. To solve this problem we have calling conventions that define how parameters are passed to a function, who allocates space for variables, and who cleans up the stack.

Callee refers to the function being called, and the caller is the function making the call.

There are several different calling conventions including cdecl, syscall, stdcall, fastcall, and more. Because I’ve chosen to focus on x64 Windows for simplicity, we will be working with x64 fastcall. If you plan to reverse engineer on other platforms, be sure to learn their respective calling convention(s).

Fastcall

Fastcall is the calling convention for x64 Windows. Windows uses a four-register fastcall calling convention by default. Quick FYI, when talking about calling conventions you will hear about something called the “Application Binary Interface” (ABI). The ABI defines various rules for programs such as calling conventions, parameter handling, and more. Key Rules for x64 Windows Fastcall:

1. Parameter Passing:

   • First 4 parameters are passed in registers (left to right): RCX, RDX, R8, R9
   • Additional parameters (5th and beyond) are pushed onto the stack from right to left
   • Integer and pointer parameters use the general-purpose registers
   • Floating-point parameters use XMM0, XMM1, XMM2, XMM3

2. Shadow Space (Home Space):

   • The caller must allocate 32 bytes (0x20) of “shadow space” on the stack
   • This reserves space for the first 4 register parameters even though they’re passed in registers
   • The callee can use this space to spill register values if needed
   • Shadow space must be allocated even if the function has fewer than 4 parameters

3. Stack Alignment:

   • The stack must be 16-byte aligned before a CALL instruction
   • CALL pushes an 8-byte return address, so the function entry point has RSP+8 alignment
   • Functions must maintain 16-byte alignment for any further CALL instructions

4. Return Values:

   • Integer/pointer return values use RAX
   • Floating-point return values use XMM0
   • Large structures (>8 bytes) are returned via a pointer passed in RCX

5. Volatile (Caller-Saved) Registers:

   • RAX, RCX, RDX, R8, R9, R10, R11
   • XMM0-XMM5
   • These registers can be modified by the callee without saving
   • The caller must save these if it needs their values after the call

6. Non-Volatile (Callee-Saved) Registers:

   • RBX, RBP, RDI, RSI, RSP, R12, R13, R14, R15
   • XMM6-XMM15
   • The callee must preserve these and restore them before returning

Example Function Call:

int MyFunction(int a, int b, int c, int d, int e, int f);
result = MyFunction(1, 2, 3, 4, 5, 6);

; Caller prepares the call
sub rsp, 0x28          ; Allocate shadow space (32 bytes) + alignment
mov dword ptr [rsp+0x20], 6   ; 6th parameter on stack
mov dword ptr [rsp+0x28], 5   ; 5th parameter on stack
mov r9d, 4             ; 4th parameter in R9
mov r8d, 3             ; 3rd parameter in R8
mov edx, 2             ; 2nd parameter in RDX
mov ecx, 1             ; 1st parameter in RCX
call MyFunction
add rsp, 0x28          ; Clean up stack (caller cleanup)
; Return value is now in RAX

Other Calling Conventions (32-bit)

While we focus on x64, understanding 32-bit conventions is useful for legacy code analysis:

cdecl (C Declaration):

• Parameters pushed on stack from right to left
• Caller cleans up the stack
• Return value in EAX
• Most commonly used in C/C++ on x86

stdcall (Standard Call):

• Parameters pushed on stack from right to left
• Callee cleans up the stack (key difference from cdecl)
• Return value in EAX
• Used by Windows API functions

thiscall:

• Used for C++ class member functions
• this pointer passed in ECX
• Other parameters pushed on stack from right to left
• Callee cleans up the stack

Comparison Table:

Convention	Parameters	Cleanup	Return Value	Usage
x64 Fastcall	RCX, RDX, R8, R9, then stack	Caller	RAX/XMM0	x64 Windows standard
cdecl	Stack (right to left)	Caller	EAX	x86 C/C++
stdcall	Stack (right to left)	Callee	EAX	x86 Windows API
thiscall	ECX (this), stack	Callee	EAX	x86 C++ methods

The Stack

The stack is a fundamental data structure in computer architecture that operates on a Last-In-First-Out (LIFO) principle. Think of it like a stack of plates - you add plates to the top and remove plates from the top.

Stack Characteristics

Memory Layout:

• The stack grows downward in memory (from high addresses to low addresses)
• RSP (Stack Pointer) always points to the top of the stack
• When you PUSH data, RSP decreases (moves to a lower address)
• When you POP data, RSP increases (moves back to a higher address)

Visual Representation:

High Memory (0x7FFF...)
    |
    |  Older data
    |  [0x1000] <- Previous stack frame
    |  [0x0FF8]
    |  [0x0FF0] <- Current top (RSP)
    |  [0x0FE8] <- Stack grows this way
    ↓
Low Memory (0x0000...)

Stack Operations

PUSH Instruction:

push rax           ; Equivalent to:
                   ; sub rsp, 8
                   ; mov [rsp], rax

1. Decrements RSP by 8 bytes (size of register in x64)
2. Writes the value to the memory location RSP points to

POP Instruction:

pop rax            ; Equivalent to:
                   ; mov rax, [rsp]
                   ; add rsp, 8

1. Reads the value from the memory location RSP points to
2. Increments RSP by 8 bytes

Example Stack Usage:

push rbx           ; Save RBX (RSP = RSP - 8)
push rcx           ; Save RCX (RSP = RSP - 8)
; ... do work ...
pop rcx            ; Restore RCX (RSP = RSP + 8)
pop rbx            ; Restore RBX (RSP = RSP + 8)

Important Notes:

• Values must be popped in reverse order of how they were pushed
• The stack must remain balanced (same RSP value on function entry and exit)
• Corrupting the stack leads to crashes or unpredictable behavior

Stack Frames

A stack frame (also called an activation record) is the portion of the stack allocated for a single function call. Each function gets its own frame that contains:

• Local variables
• Saved register values
• Return address
• Function parameters (beyond the first 4 in x64)
• Shadow space (x64 Windows)

Stack Frame Structure

High Memory
    +------------------+
    | Parameter 6      | [RBP + 0x30]
    | Parameter 5      | [RBP + 0x28]
    +------------------+
    | Return Address   | [RBP + 0x08] <- Pushed by CALL
    +------------------+
    | Saved RBP        | [RBP + 0x00] <- Current RBP points here
    +------------------+
    | Local Var 1      | [RBP - 0x08]
    | Local Var 2      | [RBP - 0x10]
    | Local Var 3      | [RBP - 0x18]
    +------------------+
    | Saved Registers  | [RBP - 0x20]
    +------------------+
    | Shadow Space     | [RSP + 0x00] <- Current RSP
    +------------------+
Low Memory

Function Prologue and Epilogue

Prologue (Function Entry): The prologue sets up the stack frame at the beginning of a function.

; Standard prologue
push rbp              ; Save caller's base pointer
mov rbp, rsp          ; Set up new base pointer
sub rsp, 0x40         ; Allocate space for locals (64 bytes)
                      ; Space includes locals + shadow space + alignment

What the prologue does:

1. Saves the caller’s RBP so it can be restored later
2. Sets RBP to the current stack pointer (establishes frame base)
3. Allocates space for local variables by moving RSP down

Epilogue (Function Exit): The epilogue tears down the stack frame before returning.

; Standard epilogue
mov rsp, rbp          ; Restore stack pointer (deallocate locals)
pop rbp               ; Restore caller's base pointer
ret                   ; Return to caller

Alternatively, you can use the leave instruction which combines the first two steps:

leave                 ; Equivalent to: mov rsp, rbp; pop rbp
ret

What the epilogue does:

1. Restores RSP to point where RBP points (deallocates local variables)
2. Pops the saved RBP value back into RBP
3. Returns control to the caller (RET pops return address and jumps to it)

Complete Function Example

Let’s see a complete function with proper stack frame management:

int Add(int a, int b, int c, int d, int e) {
    int result = a + b + c + d + e;
    return result;
}

Add:
    ; === PROLOGUE ===
    push rbp              ; Save caller's RBP
    mov rbp, rsp          ; Set up our frame base
    sub rsp, 0x20         ; Allocate 32 bytes (shadow space)

    ; Parameters are in: RCX=a, RDX=b, R8=c, R9=d, [RBP+0x30]=e

    ; === FUNCTION BODY ===
    mov eax, ecx          ; EAX = a
    add eax, edx          ; EAX = a + b
    add eax, r8d          ; EAX = a + b + c
    add eax, r9d          ; EAX = a + b + c + d
    add eax, [rbp+0x30]   ; EAX = a + b + c + d + e

    ; === EPILOGUE ===
    mov rsp, rbp          ; Restore stack pointer
    pop rbp               ; Restore caller's RBP
    ret                   ; Return (value already in RAX)

Stack Frame with Local Variables

Here’s a more complex example with local variables:

void ProcessData(int x, int y) {
    int temp1 = x * 2;
    int temp2 = y * 3;
    int result = temp1 + temp2;
    DoSomething(result);
}

ProcessData:
    ; === PROLOGUE ===
    push rbp
    mov rbp, rsp
    sub rsp, 0x40         ; Allocate space: 16 bytes locals + 32 shadow + 8 align

    ; Save non-volatile registers if we use them
    push rbx
    push rsi

    ; RCX = x, RDX = y

    ; === FUNCTION BODY ===
    ; int temp1 = x * 2
    mov eax, ecx          ; EAX = x
    shl eax, 1            ; EAX = x * 2 (left shift = multiply by 2)
    mov [rbp-0x08], eax   ; Store temp1

    ; int temp2 = y * 3
    mov eax, edx          ; EAX = y
    imul eax, 3           ; EAX = y * 3
    mov [rbp-0x10], eax   ; Store temp2

    ; int result = temp1 + temp2
    mov eax, [rbp-0x08]   ; EAX = temp1
    add eax, [rbp-0x10]   ; EAX = temp1 + temp2
    mov [rbp-0x18], eax   ; Store result

    ; Call DoSomething(result)
    mov ecx, [rbp-0x18]   ; ECX = result (first parameter)
    call DoSomething

    ; === EPILOGUE ===
    pop rsi               ; Restore saved registers
    pop rbx
    mov rsp, rbp
    pop rbp
    ret

Why Use RBP?

You might wonder why we use RBP when we could just use RSP with offsets. Here are the reasons:

1. Fixed Reference Point: RBP stays constant throughout the function, making it easy to reference locals and parameters with fixed offsets
2. RSP Changes: RSP can change during function execution (PUSH/POP operations, dynamic allocation), making it unreliable as a reference
3. Debugging: Debuggers use RBP to walk the call stack and show stack traces
4. Convention: It’s the standard practice, making code more readable

Example of RSP instability:

mov rsp, rbp
sub rsp, 0x20         ; RSP now at RBP-0x20

push rax              ; RSP now at RBP-0x28 (oops!)
; If you were using RSP offsets, all your offsets are now wrong!

; With RBP, you can still access locals reliably:
mov eax, [rbp-0x08]   ; Always works, regardless of PUSH/POP

Leaf Functions

A leaf function is a function that doesn’t call any other functions. These can sometimes skip the prologue/epilogue:

SimpleAdd:
    ; No prologue needed - we don't modify stack
    mov eax, ecx          ; EAX = first parameter
    add eax, edx          ; EAX += second parameter
    ret                   ; Return immediately

However, on x64 Windows, you still typically need to allocate shadow space if you call any functions.

Stack Alignment

Stack alignment is crucial for performance and correctness, especially with SIMD instructions.

Rules:

• Stack must be 16-byte aligned before a CALL instruction
• CALL pushes 8 bytes (return address), so function entry is misaligned by 8
• Functions must maintain alignment for any nested calls

Example:

; At function entry: RSP is 16-byte aligned + 8 (from CALL)
push rbp              ; RSP now 16-byte aligned
mov rbp, rsp
sub rsp, 0x20         ; Allocate 32 bytes (maintains 16-byte alignment)

; Before calling another function:
; RSP must be 16-byte aligned + 8 (accounting for upcoming CALL)
call SomeFunction     ; CALL will push 8 bytes, making it 16-byte aligned

Common mistake:

sub rsp, 0x18         ; Allocates 24 bytes - NOT 16-byte aligned!
; This will cause issues with aligned memory operations

Correct:

sub rsp, 0x20         ; Allocates 32 bytes - maintains alignment

Stack Overflow and Buffer Overflows

Understanding the stack is crucial for security. Stack-based vulnerabilities are common attack vectors.

Buffer Overflow Example

void VulnerableFunction(char *input) {
    char buffer[16];
    strcpy(buffer, input);  // No bounds checking!
}

Before overflow:
    +------------------+
    | Return Address   | [RBP + 0x08]
    +------------------+
    | Saved RBP        | [RBP + 0x00]
    +------------------+
    | buffer[16]       | [RBP - 0x10]
    +------------------+

After overflow with 32-byte input:
    +------------------+
    | OVERWRITTEN!     | [RBP + 0x08] <- Return address corrupted
    +------------------+
    | OVERWRITTEN!     | [RBP + 0x00] <- Saved RBP corrupted
    +------------------+
    | buffer overflow  | [RBP - 0x10]
    +------------------+

When the function returns, it will jump to the corrupted return address, potentially executing attacker-controlled code.

Stack Protection Mechanisms

Stack Canaries:

; Function prologue with canary
mov rax, [security_cookie]    ; Load canary value
mov [rbp-0x08], rax           ; Place on stack

; Function epilogue with check
mov rax, [rbp-0x08]           ; Load canary from stack
xor rax, [security_cookie]    ; Compare with original
jne __security_check_cookie   ; Jump to handler if modified

If the canary value is overwritten during a buffer overflow, the check will fail and the program will terminate safely.

Practical Stack Analysis Tips

When reverse engineering, here’s what to look for:

1. Function Entry: Look for push rbp; mov rbp, rsp - this indicates function start
2. Stack Space: The sub rsp, XXX tells you how much local space is allocated
3. Local Variables: Accessed as [rbp-offset] or [rsp+offset]
4. Parameters: First 4 in registers, rest at [rbp+offset] (positive offsets above RBP)
5. Function Exit: Look for leave; ret or mov rsp, rbp; pop rbp; ret

Example Analysis:

MyFunction:
    push rbp              ; Function start marker
    mov rbp, rsp
    sub rsp, 0x50         ; 80 bytes allocated (locals + shadow + alignment)

    mov [rbp-0x08], rcx   ; Saving first parameter to local
    mov [rbp-0x10], rdx   ; Saving second parameter to local

    ; This tells us there are at least 2 parameters and
    ; at least 16 bytes of local variable space being used

Understanding the stack and calling conventions is fundamental to reverse engineering. Practice identifying these patterns in real code, and you’ll quickly become proficient at analyzing function behavior and data flow.
