Complete Security Architecture Set-up

Posted Feb 17, 2026 Updated Feb 18, 2026

By Nasri Anis

19 min read

In this lab, we will deploy and interact with a segmented, routed network that uses multiple subnets and device categories to implement technologies prevalent in real-world enterprise networks. The lab is designed to be realistic, using Containerlab to simulate a working environment without the overhead of full virtual machines.

Lab Objectives

By the end of this lab, you will be able to:

Design a segmented enterprise network using routed security zones
Deploy a realistic network topology using Containerlab
Implement static routing across WAN links
Enforce security policies using ACL-based firewalls
Transition from manual configuration to Infrastructure as Code (IaC)
Validate network behavior through systematic testing

Topology

Our mini network is composed of a company network LAN and a WAN, The company has a Web server inside their network that external people can visit, in addition employees can SSH into that server. Our purpose is to set up the topology, configure the company router with the corrects subnets and ACL rules for a secure and working network.

Zone	Subnet	Trust Level	Purpose
Zone A (LAN-A)	10.0.0.0/24	Untrusted	External users
WAN	115.49.23.0/30	Transit	Inter-router connectivity
Zone B-0 (Internal Hosts)	10.0.1.0/24	Trusted	Employee workstations
Zone B-1 (Server Zone)	10.0.2.0/24	Semi-Trusted	Public-facing servers

The server zone is being shared between the company and externals network, it is considered as a demilitarized zone.

Devices

Routers: Nokia SR Linux (router-a & router-b)
Switches: Arista cEOS (switch-a, switch-b-0, switch-b-1)
Hosts: Alpine Linux (admin-host, host-a, company-server)

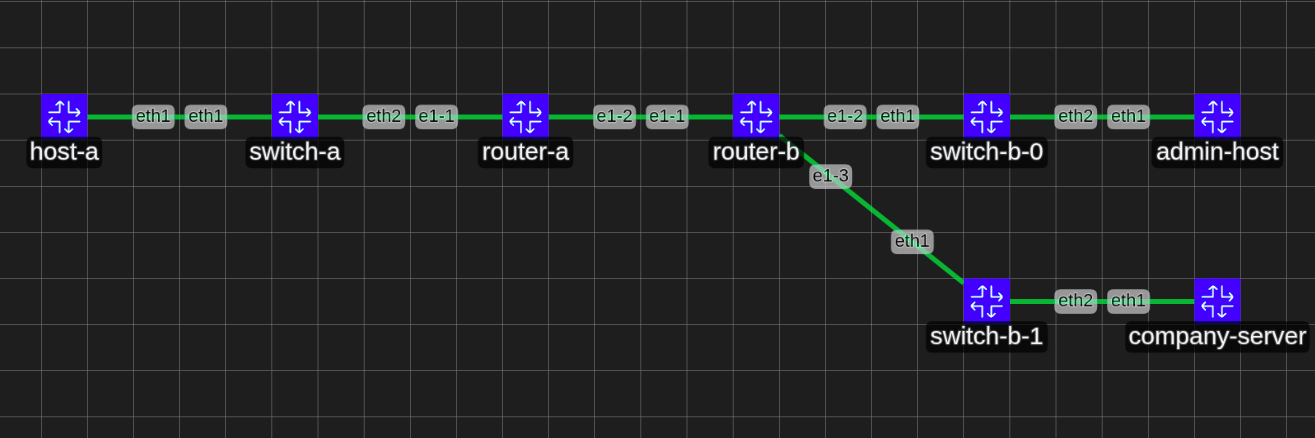

Topology Picture :

Environment set up

You can install Containerlab on your host or a VM (recommended). Follow the official installation guide.

Pull the docker image of the Nokia SR Linux to be our router. More info
- Pull the image docker pull ghcr.io/nokia/srlinux
- Connect to the image docker exec -it <container-name/id> bash
Import and install the Artisa cEOS from their official website to be our switch
- Import docker import cEOS-lab-4.35.1F.tar.xz ceos
Build the alpine linux images from the docker files there and there
- Build sudo docker build -t alpine-host -f alpine-host.dockerfile .

and sudo docker build -t alpine-server -f alpine-server.dockerfile .

There are our new containers :

Topology

Now that we have all the containers representing our Network devices we will create a file that tells to containerlab how to attack all these containers together:

Create a folder for our Containerlab project and create the main topology file as the docs says
- We already created a containerlab folder
- We will now create a topology file security-arch.clab.yaml
Set up the basic topology without routes implementing the following subnets for each network :

Network Segment	Subnet	Gateway	Description
External Network	10.0.0.0/24	10.0.0.1	Public-facing network segment
Internal Network (Hosts)	10.0.1.0/24	10.0.1.1	Internal hosts and workstations
Internal Network (Servers)	10.0.2.0/24	10.0.2.1	Server infrastructure
WAN Link	115.49.23.0/30	-	Router-to-router connection

router-a (External): 115.49.23.1/30
router-b (Internal): 115.49.23.2/30

Copy the provided default .json files of router-a & router-b (no-static-route version)

Final Topology (Think of this topology as the connections between the switches and router and end devices) :


name: company-network

topology:
  nodes:
    # External Network (10.0.0.0/24)
    host-a:
      kind: linux
      image: alpine-host:latest
      exec:
        - ip addr add 10.0.0.10/24 dev eth1
        - ip route replace default via 10.0.0.1

    switch-a:
      kind: ceos
      image: ceos:latest

    # WAN Routers (115.49.23.0/30)
    router-a:
      kind: nokia_srlinux
      image: ghcr.io/nokia/srlinux:latest
      # startup-config will be added later with .json files
      startup-config: router-a-no-static-route.json # Adding the default configuration to begin with

    router-b:
      kind: nokia_srlinux
      image: ghcr.io/nokia/srlinux:latest
      # startup-config will be added later with .json files
      startup-config: router-b-no-static-route.json # Adding the default configuration to begin with

    # Internal Network - Hosts Side (10.0.1.0/24)
    switch-b-0:
      kind: ceos
      image: ceos:latest

    admin-host:
      kind: linux
      image: alpine-host:latest
      exec:
        - ip addr add 10.0.1.10/24 dev eth1
        - ip route replace default via 10.0.1.1

    # Internal Network - Servers Side (10.0.2.0/24)
    switch-b-1:
      kind: ceos
      image: ceos:latest

    company-server:
      kind: linux
      image: alpine-server:latest
      exec:
        - ip addr add 10.0.2.10/24 dev eth1
        - ip route replace default via 10.0.2.1

  links:
    # External Network
    - endpoints: [ "host-a:eth1", "switch-a:eth1" ]
    - endpoints: [ "switch-a:eth2", "router-a:e1-1" ]

    # WAN Link
    - endpoints: [ "router-a:e1-2", "router-b:e1-1" ]

    # Internal Networks
    - endpoints: [ "router-b:e1-2", "switch-b-0:eth1" ]
    - endpoints: [ "switch-b-0:eth2", "admin-host:eth1" ]

    - endpoints: [ "router-b:e1-3", "switch-b-1:eth1" ]
    - endpoints: [ "switch-b-1:eth2", "company-server:eth1" ]

Subnets configuration

Implementing the following subnets for each network :

Network Segment	Subnet	Gateway	Description
External Network	10.0.0.0/24	10.0.0.1	Public-facing network segment
Internal Network (Hosts)	10.0.1.0/24	10.0.1.1	Internal hosts and workstations
Internal Network (Servers)	10.0.2.0/24	10.0.2.1	Server infrastructure
WAN Link	115.49.23.0/30	-	Router-to-router connection

router-a (External): 115.49.23.1/30
router-b (Internal): 115.49.23.2/30

Since our routers run inside docker containers we can connect to them and configure them for subnets via these commands : - for routers through ssh : ssh admin@<router name> with password: NokiaSrl1! - through docker shell : docker exec -it <router name> sr_cli - For host remote access : docker exec -it <host name> sh

First lets tackle the routers : I will connect to the router a via the command : docker exec -it <router name> sr_cli. This will get me a shell into that device. For the configuration we will assign to each router interface link a subnet given in the table above, I can now configure and save the config files :


# Enter candidate configuration mode
enter candidate

# Configure the interface with IP address
set interface ethernet-<dev/dev> subinterface 0 ipv4 admin-state enable
set interface ethernet-<dev/dev> subinterface 0 ipv4 address <IP>

# Enable the interface
set interface ethernet-<dev/dev> admin-state enable

# Commit and save the configuration
commit save

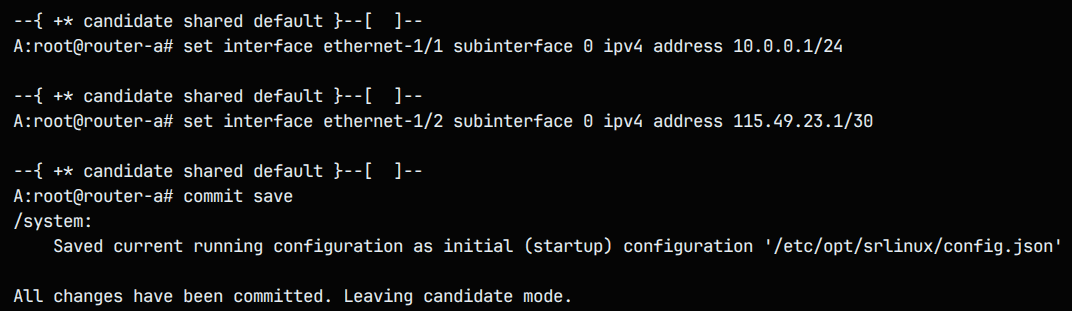

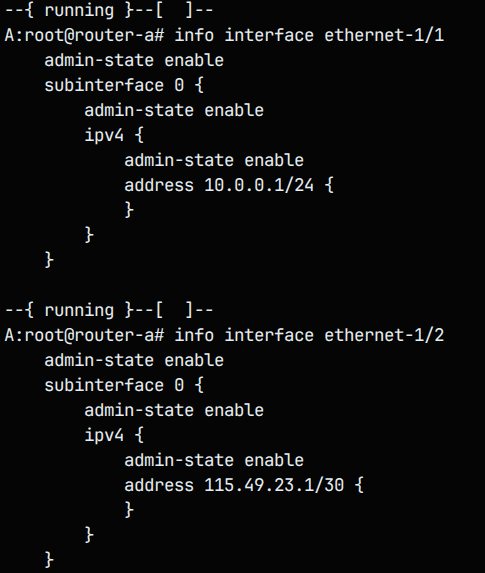

Router A configuration :

The ethernet-1/1 interface is an external LAN and the ethernet-1/2 is the WAN. We can test if everything is fie via looking at info interface <interface> as shown below :

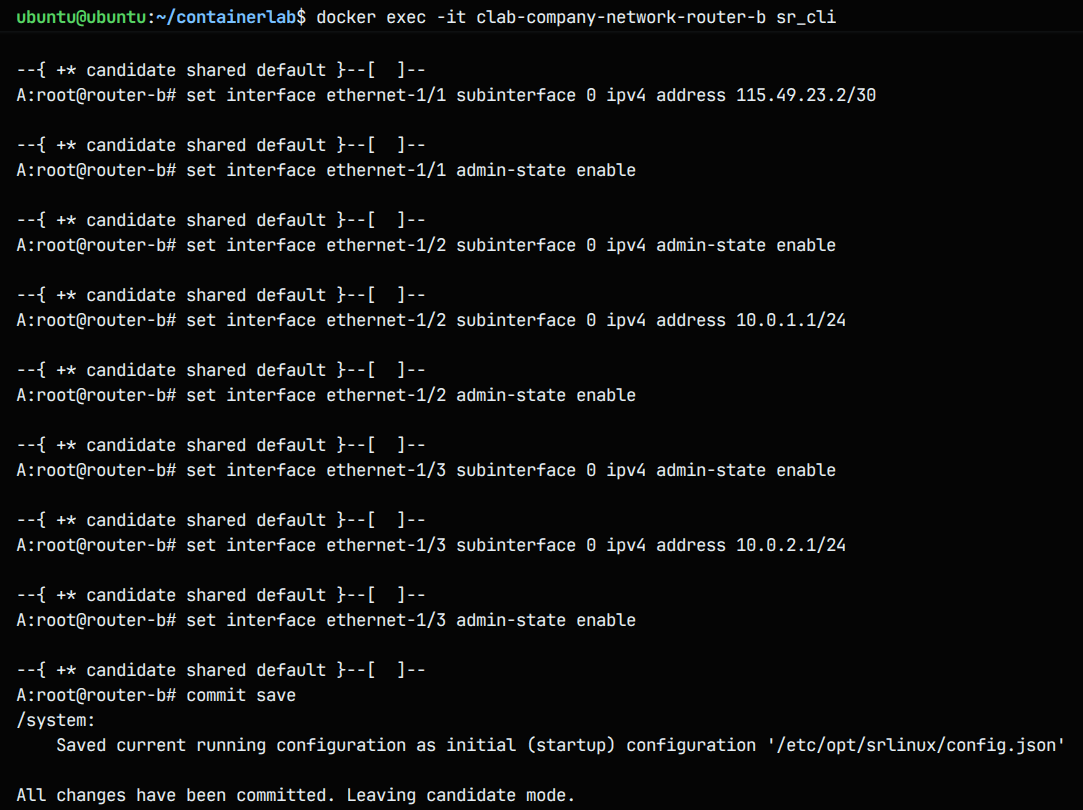

Same for router b looking at the table above we configure this way :

To configure the end devices with a static IP and a default gate-away we modify the yaml file (since there is no other way for persistence), we add :

  exec:
	- ip addr add <static IP> dev <dev>
	- ip route replace default via <default gateway IP>

We can test via the command ifconfig inside the company server :

Note: Every commit save execution a modified router config file will be set with the options, we will need to copy this every time and place it in the startup configuration file in our yaml instead of the no static default config by running the command : docker exec -it <device name> bash -c "cat/etc/opt/srlinux/config.json" > configs/router.json

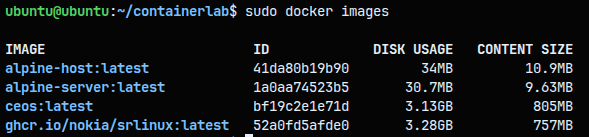

After inspecting the size of the docker images we notice that there is a huge difference between alpine images (30-34MB) compared to Network OS images (3.2-3GB) between the cEOS switch that takes the most space and the Nokia SR Linux router.

If these full OS copies images where deployed in VMs they would be up to (10-30+ GB) this include the entire kernel, libraries, GUI this would be heavy to run for our computers, however using containerization save space and power since all these images uses the same kernel the Host uses and it also allows multiple images to share common layers.

First Deployment

We will deploy our topology using the command :
- clab deploy -t security-arch.clab.yaml --reconfigure

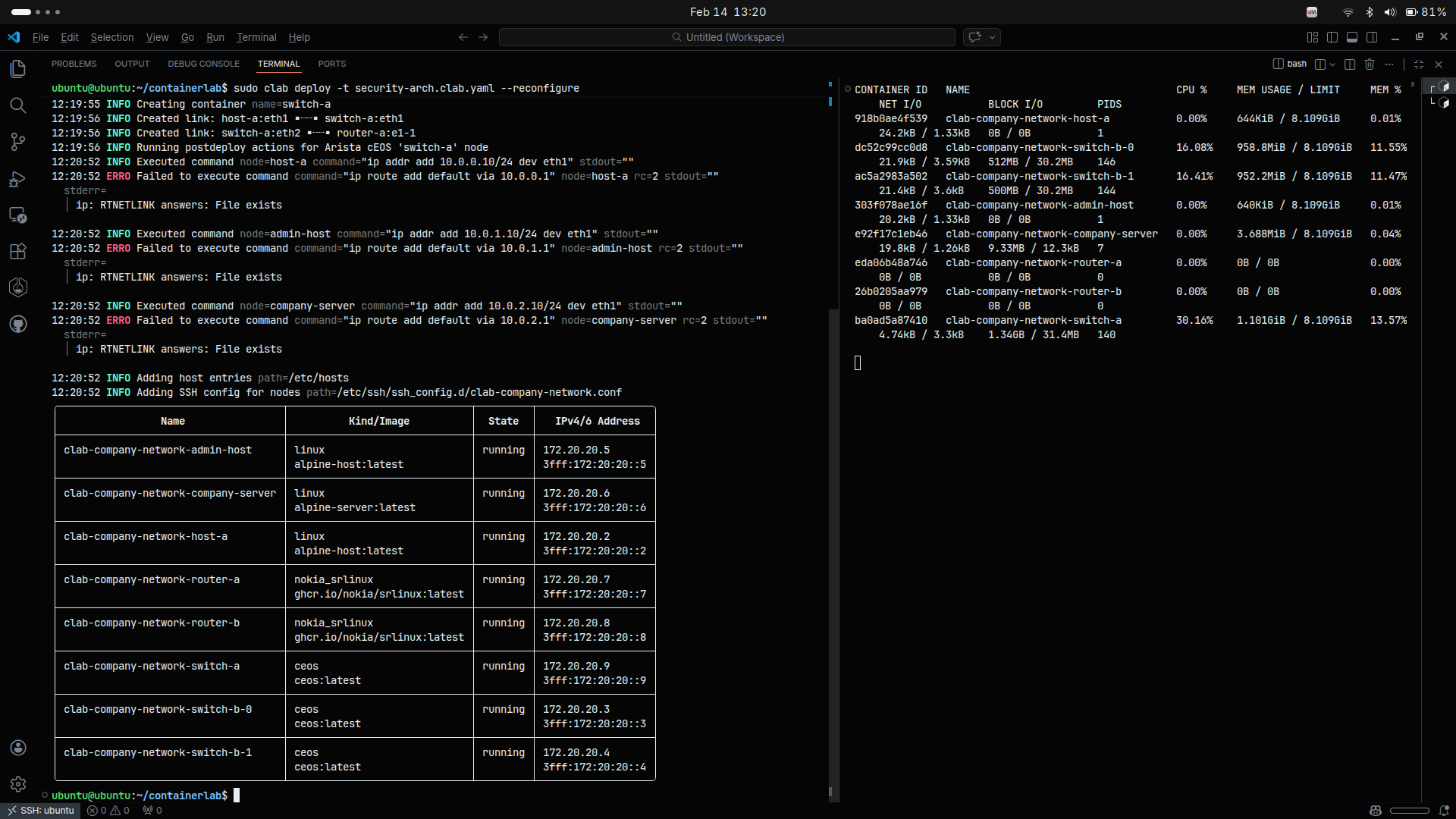

We can see that containerlab is creating containers following the security-arch.clab.yaml file topology and output a table with all devices so we can remote access them. By Monitoring the containers using the command : sudo docker stats we see that the containers are up and are using up to 1GB of RAM for the network switches containers.

We can now ssh or connect via docker shell into the networking devices to configure them :

for routers through ssh : ssh admin@<router name> with password: NokiaSrl1!
through docker shell : docker exec -it <router name> sr_cli
For host remote access : docker exec -it <host name> sh
Testing

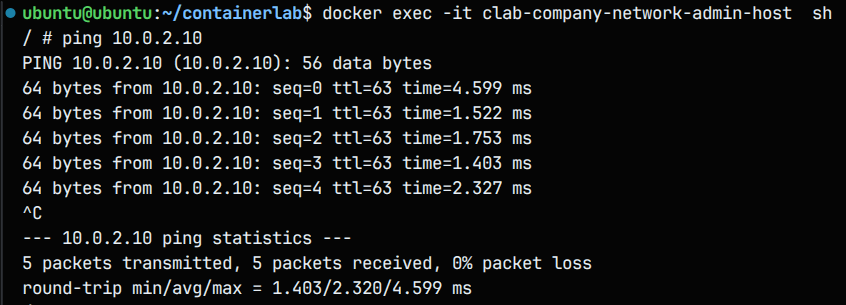

intra-zone connectivity : we will try to ping from the admin (10.0.1.10) to the server (10.0.2.10)

The intra network (Server-Host) connection works, because the two connected to the same router which make the connection between he two subnets work.

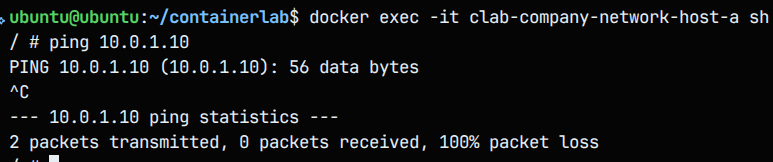

Inter-zone connectivity : we will try to ping from the host-a (10.0.0.10) to the admin (10.0.1.10)

The inter network connectivity isn’t working because for this unknown network to be able to access the company network need its router to route the connections for that IP (Company) across the WAN (in short the router has no idea where to forward these packets).

To be sure that its the routing fault we can inspect the ARP tables inside the routers via the command show arpnd arp-entries :

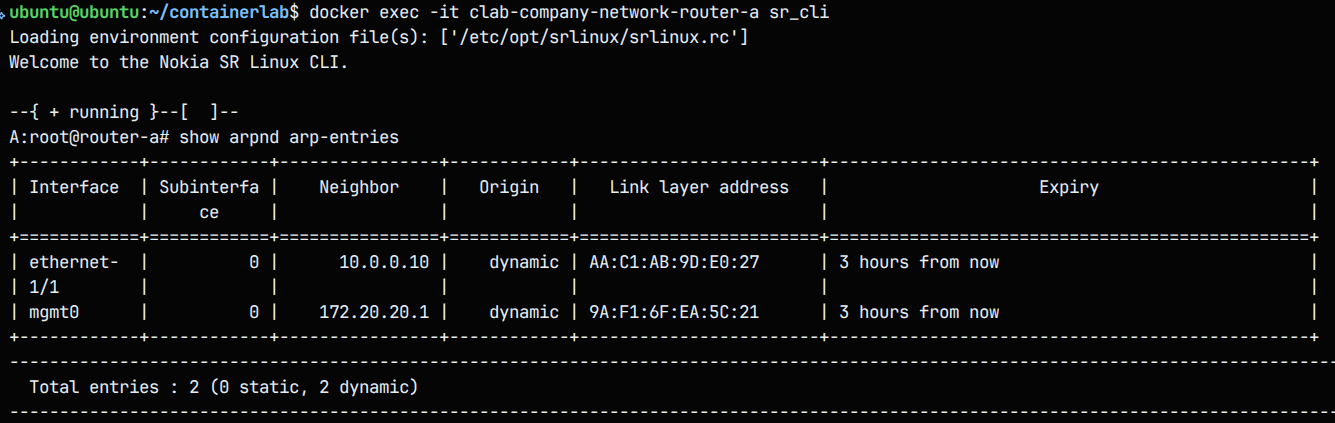

router a :

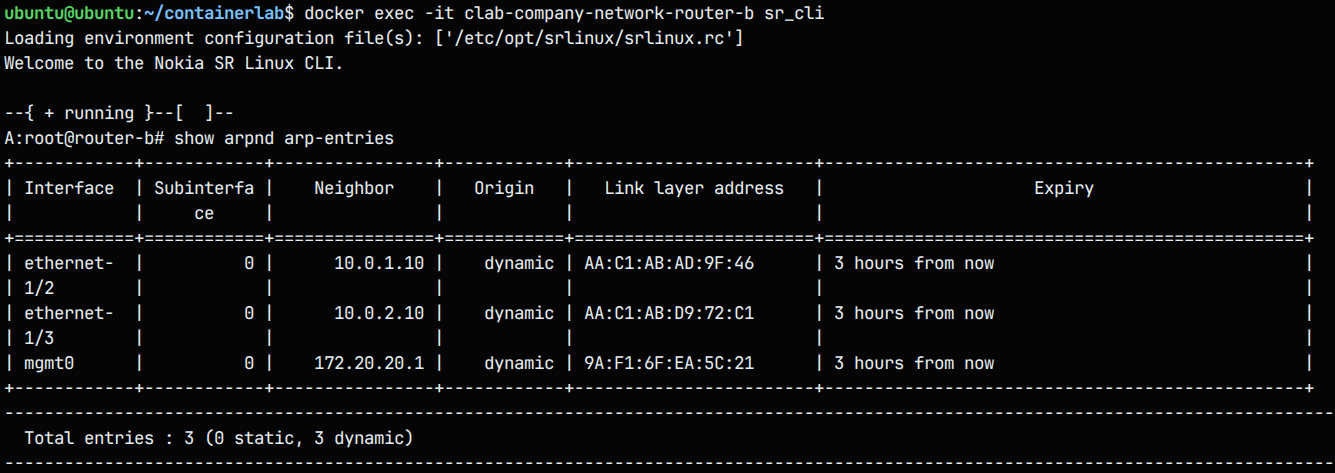

router b :

Yes we see that in the intra zone router-B have both Devices connected and can route directly between Ethernet-1/2 and Ethernet-1/3 and in the inter zone the router-A have the host-a device connected. We see that there is no routing between the two routers and that makes the connection between the two zone impossible, router a and b doesn’t know which networks exists behind the WAN. We need to configure that.

Configuring Inter-Zones connectivity

Configuration model :

enter candidate
set /network-instance default next-hop-groups group <name> nexthop 1 ip-address <ip to forward trafic to>
set /network-instance default static-routes route <subnet from where trafic come> next-hop-group <name>
commit save

Router B configuration :

enter candidate
set /network-instance default next-hop-groups group TO_ROUTER_A nexthop 1 ip-address 115.49.23.1
set /network-instance default static-routes route 10.0.0.0/24 next-hop-group TO_ROUTER_A
commit save

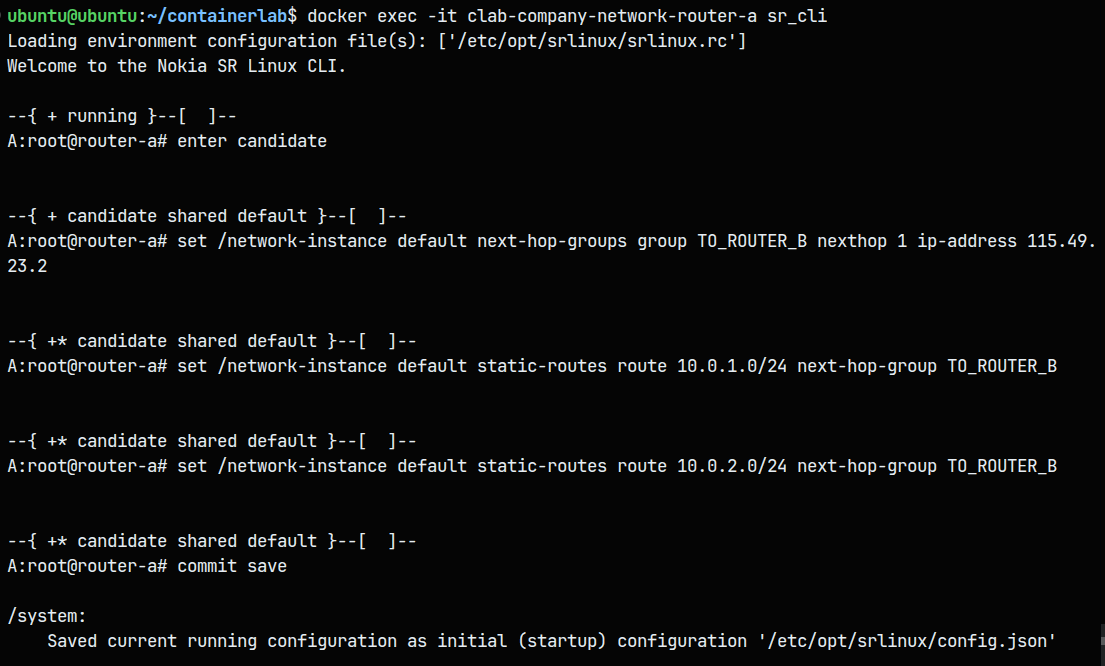

Router A configuration :


enter candidate
set /network-instance default next-hop-groups group TO_ROUTER_B nexthop 1 ip-address 115.49.23.2
set /network-instance default static-routes route 10.0.1.0/24 next-hop-group TO_ROUTER_B
set /network-instance default static-routes route 10.0.2.0/24 next-hop-group TO_ROUTER_B
commit save

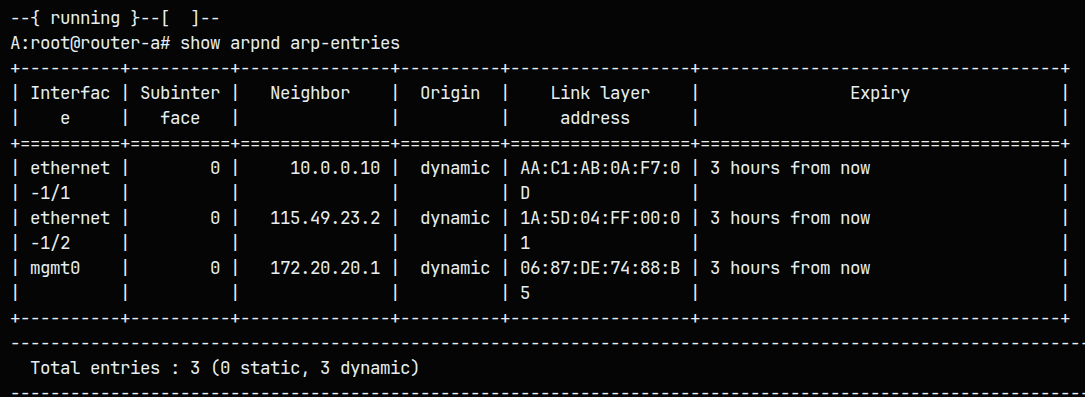

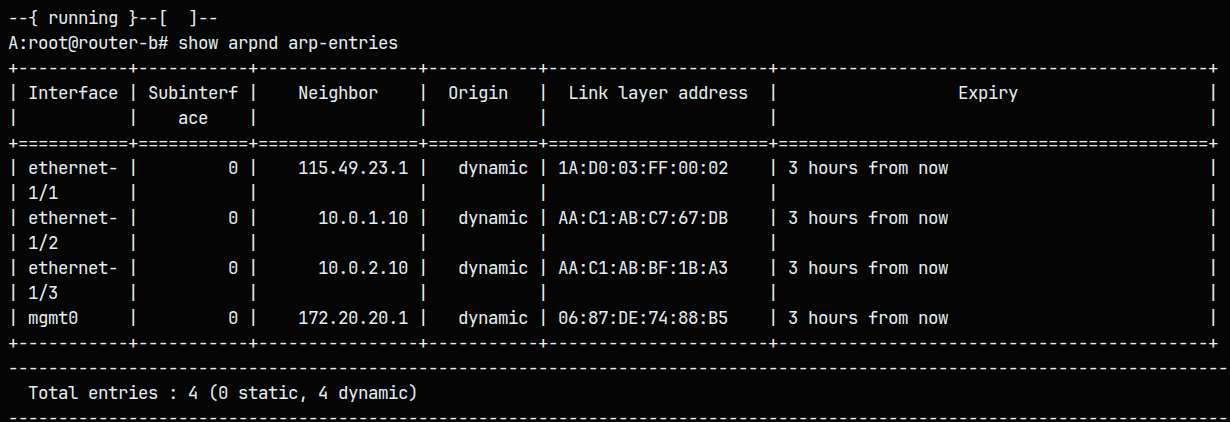

We can now verify the new ARP entries for the inter zones connectivity (router b/a) :

Pinging from host a to the company admin computer is now possible, In short routing rules give you precise control over where, how, and to whom traffic flows in a network or application.

Process automation

This process can be automatized using a well configured JSON config file that we give to the router, This prevent configuring every-time the routers by hand. Access the config files of the routers and add these line of code in the network-instance section and configure the files into the startup config of the two routers :

for router A :


{
  "network-instance": [
    {
      "name": "default",
      "next-hop-groups": {
        "group": [
          {
            "name": "TO_ROUTER_B",
            "nexthop": [
              {
                "index": 1,
                "ip-address": "115.49.23.2"
              }
            ]
          }
        ]
      },
      "static-routes": {
        "route": [
          {
            "prefix": "10.0.1.0/24",
            "next-hop-group": "TO_ROUTER_B"
          },
          {
            "prefix": "10.0.2.0/24",
            "next-hop-group": "TO_ROUTER_B"
          }
        ]
      }
    }
  ]
}

For router B :


{
  "network-instance": [
    {
      "name": "default",
      "next-hop-groups": {
        "group": [
          {
            "name": "TO_ROUTER_A",
            "nexthop": [
              {
                "index": 1,
                "ip-address": "115.49.23.1"
              }
            ]
          }
        ]
      },
      "static-routes": {
        "route": [
          {
            "prefix": "10.0.0.0/24",
            "next-hop-group": "TO_ROUTER_A"
          }
        ]
      }
    }
  ]
}

Testing and takeaways about IaC

After redeploying the lab we see that the connection between the intra-zone is working (pinging from host-a to the company server for example works).

The concept that allowed us the automatize the process into code is called infrastructure as code defining a network configurations (including routes, firewall rules, subnets) in version-controlled code, so they are automatically and consistently applied every deployment. A little comparison between setting up by hand and Iac can be made :

Feature	Manual Approach	IaC / Automated Approach
Speed	Slow	Fast
Human Error	High risk	Minimal risk
Consistency	Varies per environment	Always identical
Auditability	Hard to track	Full version history (Git)
Scalability	Difficult	Easily scalable
Repeatability	Must redo every time	One command re-deploys all
Security	Easy to misconfigure	Enforced through code

In short infrastructure as code is better for :

Production environments
Team collaboration
Repeatable deployments
Multi-site networks
Compliance/audit requirements
Change management

and manual configuration for :

Quick testing/debugging
Learning/lab environments
One-off troubleshooting
Emergency fixes

Implementing Security Zones and Firewalls (ACLs)

In this part we’ll implement security zones, by restricting access to the SSH service of the server from the untrusted, external network. We’ll implement a simple type of firewall technology called ACLs (Access Control Lists), Where we’ll allow/block certain connections based on source, destination, & service.

We will implement to the Company router some rules : - Allow HTTP to the corporate server from anywhere. - Allow all traffic within the Corporate Network (Internal trust zone) (both B-0 to B-1 & vice-versa) - Block SSH into the Corporate Network from anywhere (to both B-0 & B-1). - Allow ICMP into the corporate network from anywhere (to both B-0 & B-1). - Permit ICMP to router-b from anywhere. - Block all traffic.

Set up examples :

Create ACL and Block SSH to LAN B-0 (10.0.1.0/24) :


docker exec -it clab-company-network-router-b sr_cli

enter candidate
acl acl-filter CORPORATE_SECURITY type ipv4 entry 1000
match ipv4 destination-ip address 10.0.1.0 mask 255.255.255.0
match ipv4 protocol tcp
match transport destination-port value 22
action drop
/
commit save

Add Entry to Block SSH to LAN B-1 (10.0.2.0/24) :

enter candidate
acl acl-filter CORPORATE_SECURITY type ipv4 entry 1100
match ipv4 destination-ip address 10.0.2.0 mask 255.255.255.0
match ipv4 protocol tcp
match transport destination-port value 22
action drop
/
commit save

Implementing the other rules :


docker exec -it clab-company-network-router-b sr_cli

enter candidate
acl acl-filter CORPORATE_SECURITY type ipv4

# Rule 1: Allow HTTP to corporate server (10.0.2.10)
entry 100
match ipv4 destination-ip address 10.0.2.10 mask 255.255.255.255
match ipv4 protocol tcp
match transport destination-port value 80
action accept
/

# Rule 2a: Allow all traffic within corporate network (B-0 to B-1)
entry 200
match ipv4 source-ip address 10.0.1.0 mask 255.255.255.0
match ipv4 destination-ip address 10.0.2.0 mask 255.255.255.0
action accept
/

# Rule 2b: Allow all traffic within corporate network (B-1 to B-0)
entry 210
match ipv4 source-ip address 10.0.2.0 mask 255.255.255.0
match ipv4 destination-ip address 10.0.1.0 mask 255.255.255.0
action accept
/

# Rule 3a: Block SSH to B-0 network
entry 300
match ipv4 destination-ip address 10.0.1.0 mask 255.255.255.0
match ipv4 protocol tcp
match transport destination-port value 22
action drop
/

# Rule 3b: Block SSH to B-1 network
entry 310
match ipv4 destination-ip address 10.0.2.0 mask 255.255.255.0
match ipv4 protocol tcp
match transport destination-port value 22
action drop
/

# Rule 4a: Allow ICMP to B-0 network
entry 400
match ipv4 destination-ip address 10.0.1.0 mask 255.255.255.0
match ipv4 protocol icmp

/

# Rule 4b: Allow ICMP to B-1 network
entry 410
match ipv4 destination-ip address 10.0.2.0 mask 255.255.255.0
match ipv4 protocol icmp
action accept
/

# Rule 5: Permit ICMP to router-b itself
entry 500
match ipv4 protocol icmp
action accept
/

# Rule 6: Block all other traffic (default deny)
entry 9999
action drop
/

commit save

Then we identify which interface connects to Router-A (the WAN link):

# Check which interface has 115.49.23.x IP
show interface brief

Assuming it’s ethernet-1/1, apply the ACL:

enter candidate
set acl interface ethernet-1/1 input acl-filter CORPORATE_SECURITY type ipv4
commit save

This is where Infrastructure as Code comes in handy. All of this configuration takes a big amount of time and it is very susceptible to human error (I made some myself). Another approach is to use ready-made configuration files that the router interprets and uses directly. In bigger companies and production environments, doing this manually across dozens or hundreds of routers and network devices is simply not realistic.

With IaC, all the network configurations — including static routes, firewall rules, VLANs, and routing rules — are written and stored as code files. This means the entire network setup can be deployed automatically, consistently, and repeatedly with a single command. If a mistake is made, it can be caught in a code review before it ever reaches the network, and rolled back instantly if needed.

Implementing ACLs using JSON can be made by following this simple example configuration line 1273 of my configuration files (can be found below) :


"srl_nokia-acl:acl": {
    "acl-filter": [
      {
        "name": "CORPORATE_SECURITY",
        "type": "ipv4",
        "entry": [
          {
            "sequence-id": 100,
            "match": {
              "ipv4": {
                "protocol": "tcp",
                "destination-ip": {
                  "address": "10.0.2.10",
                  "mask": "255.255.255.255"
                }
              },
              "transport": {
                "destination-port": {
                  "value": 80
                }
              }
            },
            "action": {
              "accept": {

              }
            }
          },

My configuration files can be found there for router b and there for router a.

Testing and takeaways

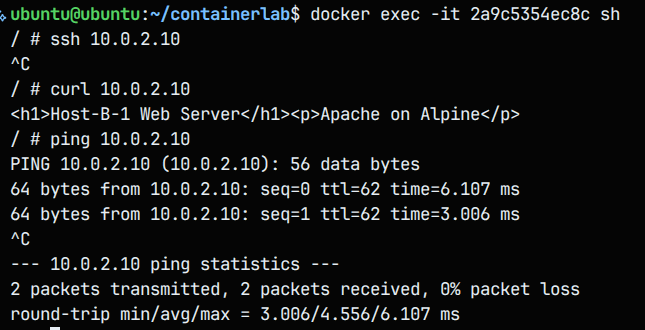

Now every SSH attempt from an external network is blocked by the company router only HTTP and ICMP connections are permitted. Example for host-a :

Test	Expected Result
Ping within same LAN (intra)	work
Ping across LANs (inter)	work
SSH to LAN B-0 from outside	blocked (ACL rule)
SSH to LAN B-1 from outside	blocked (2nd ACL entry)
Curl from intra	work

In our configuration we added at the end a deny all rule Its purpose is Any traffic not explicitly allowed by a previous rule is automatically blocked, It ensures no unintended traffic slips through due to a missing rules and It follows the Principle of Least Privilege only what is explicitly permitted is allowed, everything else is denied.

Key Takeaways

This lab goes beyond the mechanics of connecting containers; it highlights a fundamental transformation in modern networking. The exercise reflects the industry-wide transition toward software-defined infrastructure, where networks are no longer built device by device, but designed, validated, and deployed as cohesive systems. By replacing manual configuration with automation, we achieve networks that are faster to deploy, easier to audit, and significantly more reliable.

1. Intentional Connectivity: Routing and Segmentation

In modern enterprise environments, unrestricted “plug-and-play” connectivity represents a serious security liability. Through network segmentation, we deliberately isolated internal company resources (Zone B) from external-facing services (Zone A).

Key Insight: Connectivity must be deterministic. By explicitly defining static routes, we ensured that traffic flows only along authorized paths.
Architectural Shift: The network evolved from a flat topology—where all systems implicitly trust one another—to a structured, routed design where each subnet has a clearly defined purpose and destination.

2. Reinforcing the Security Posture with ACLs

Access Control Lists (ACLs) were introduced as a foundational security control. Rather than relying on broad allow/deny rules, ACLs provide precise filtering based on protocols and services (e.g., SSH versus HTTP).

Key Insight: Effective security is grounded in the principle of least privilege. By enforcing an implicit deny policy, any traffic not explicitly permitted is blocked by default.
Operational Shift: Security moves from a passive assumption to an actively enforced policy, where every packet is validated against clearly defined rules.

3. Infrastructure as Code: The Defining Transformation

The most impactful change demonstrated in this lab is the transition from imperative management (manual command execution) to declarative configuration using Infrastructure as Code (IaC).

Key Insight: Defining network topology and policy using YAML and JSON allows infrastructure to be treated like software—repeatable, testable, and version-controlled.
Operational Shift: Manual configuration and ad-hoc troubleshooting are replaced by a single, authoritative source of truth. If the configuration is correct, the resulting network state is correct.

Final Thoughts

Modern networking is no longer about individual devices or physical connections—it is about expressing intent through code. Tools like Containerlab and IaC frameworks enable engineers to design resilient, automated systems that scale with confidence. By adopting these practices, you move from simply managing networks to architecting infrastructure that is secure, reproducible, and future-proof.

Networking

This post is licensed under CC BY 4.0 by the author.

Lab Objectives

Topology

Devices

Environment set up

Topology

Subnets configuration

First Deployment

Testing

Configuring Inter-Zones connectivity

Process automation

Testing and takeaways about IaC

Implementing Security Zones and Firewalls (ACLs)

Testing and takeaways

Key Takeaways

1. Intentional Connectivity: Routing and Segmentation

2. Reinforcing the Security Posture with ACLs

3. Infrastructure as Code: The Defining Transformation

Final Thoughts

Trending Tags
